New and Noteworthy in OpenAPI Studio V3.1.0
Issues
- 126 Array fields removed from schemas after edit
- If a schema contains a field of type array, it will be deleted after editing a schema.
- I02093 Add generate extension to operation
- Prevent displaying AddXGenerationDialog after creating operation. Reopen the AddXGenerationDialog from the context menu to update the content(use the same context menu to create and update the extension).
New and Noteworthy in OpenAPI Studio V3.0.3
Other issues/enhancements resolved
- 125 - Upgrade openapi generator cli to version 5.4.0
- The current CLI version was upgraded to version 5.4.0.
New and Noteworthy in OpenAPI Studio V3.0.2

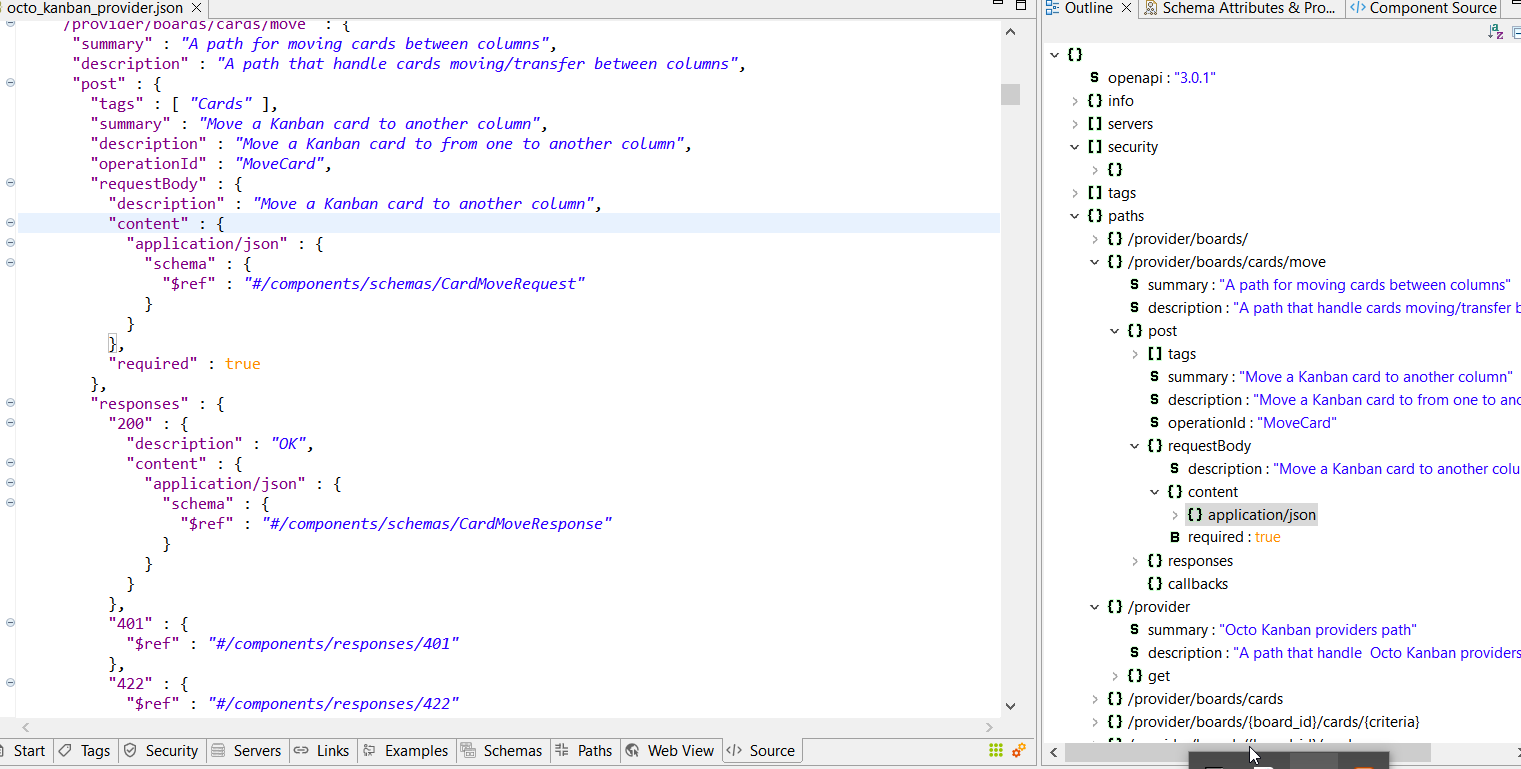

| 123 - Replace Reprezen editor with Eclipse standard JSON editor. | Now, the OpenAPI studio ships with a much better and more efficient editor.
|
|---|
Other issues/enhancements resolved
- 124 - The OpenAPI studio new source editor causes issues
- The studio source editor now uses by default the available text editor and gives a prompt dialog each time you open a document file. The outline view is not reacting/being populated. As a result, also the "Show in source editor" menu is broken.
- I34 - Editor not working in OpenAPI Studio
- OpenAPI Studio has switched to new editors. The editor is not shipped which gives popup menus. Also, there are problems linking to the source code.
- I35 - The operation edition wizard OK button always disabled
- When editing an operation (by right-clicking it > Edit), the OK button in the edition wizard is not enabled.
- I36 - Don't validate an inline schema name
- Inline schemas don't need to be validated by the studio inspector.
New and Noteworthy in OpenAPI Studio V3.0.1

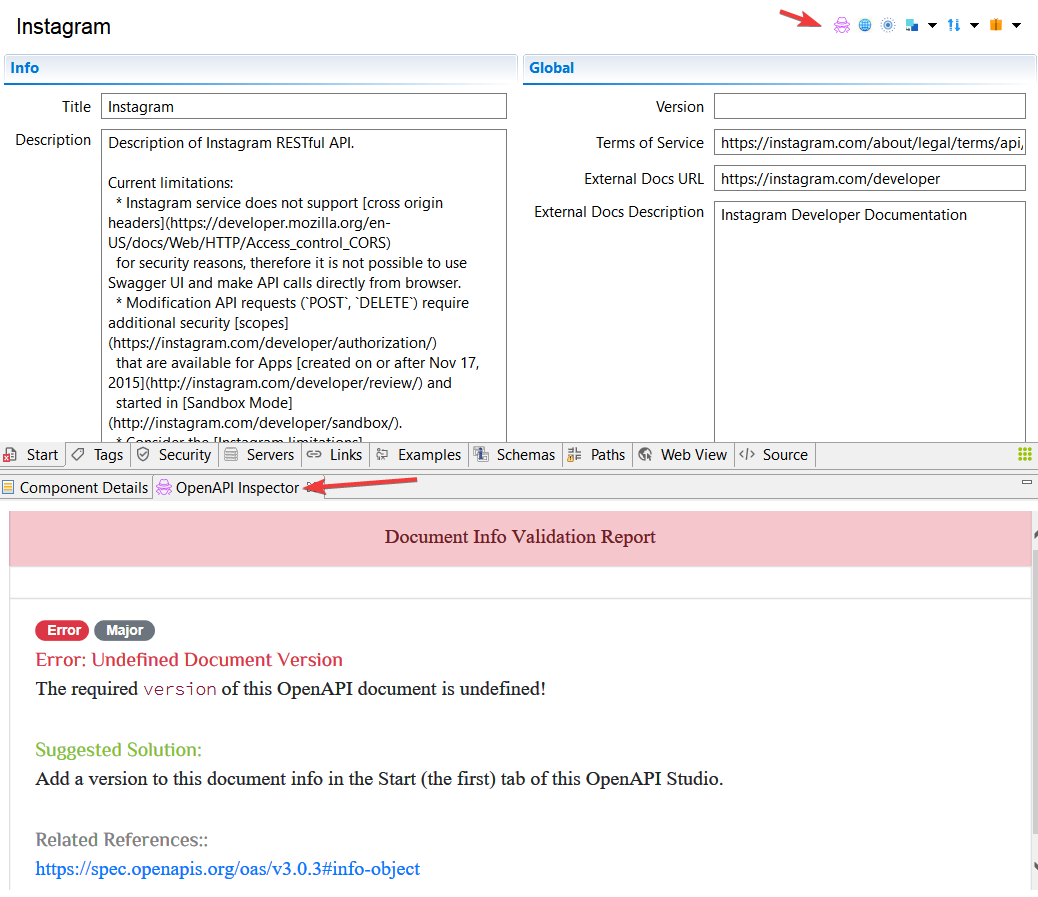

| Object Info validation |
The first tab, containing the document info, validates its content according to the OpenAPI specs.
|
|---|

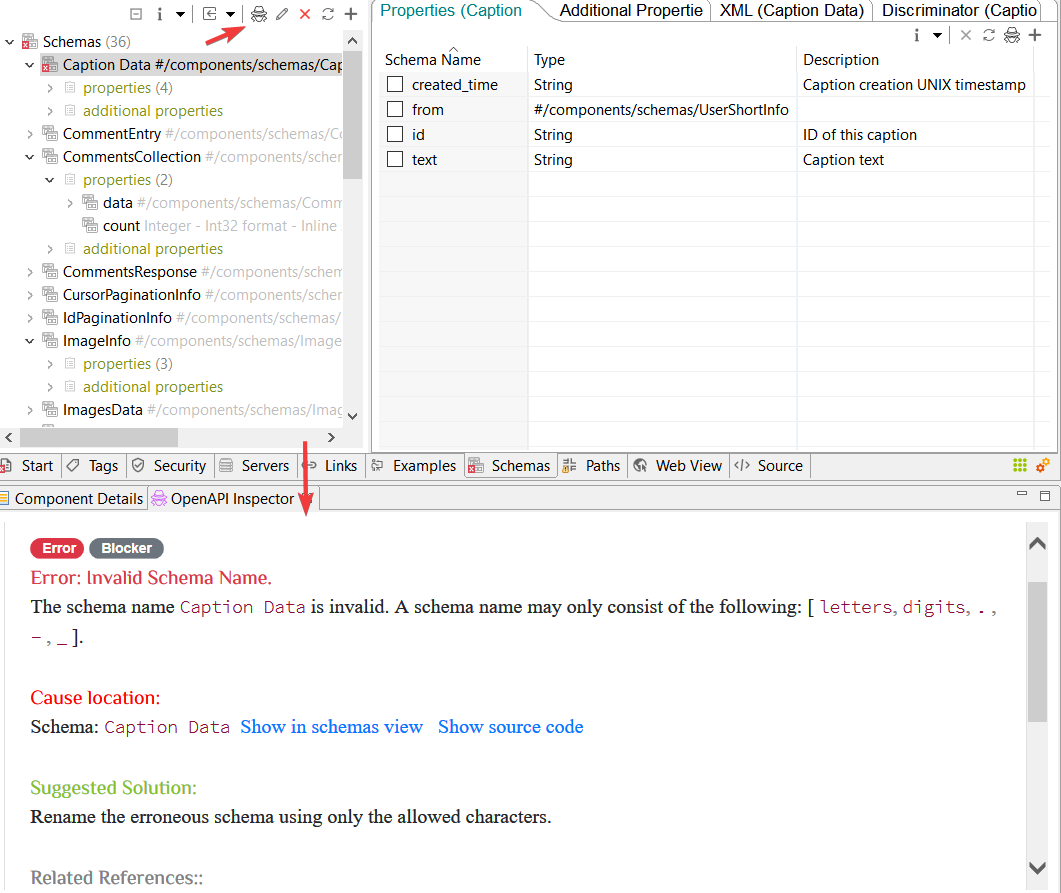

| Schemas validation |
We offer now validation for the schemas tab section. For Both the global schemas section:

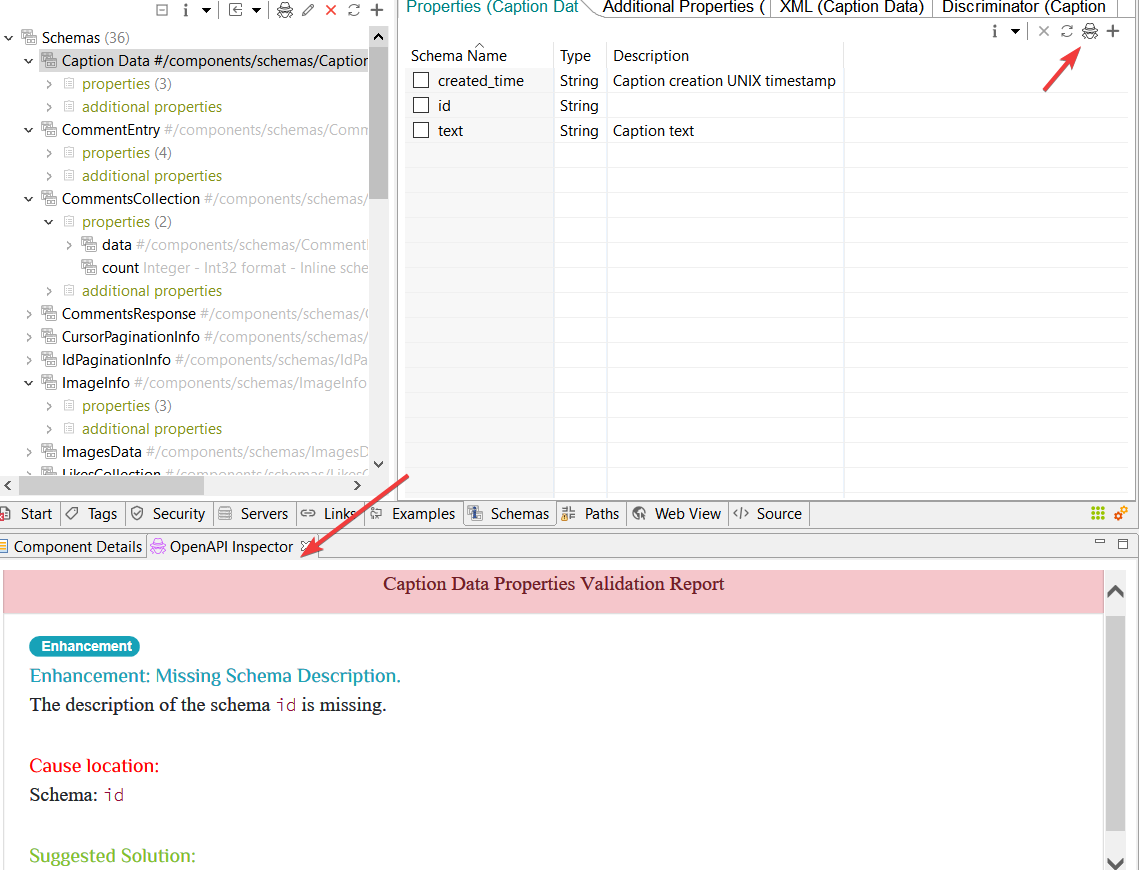

And schema properties section.
|
|---|

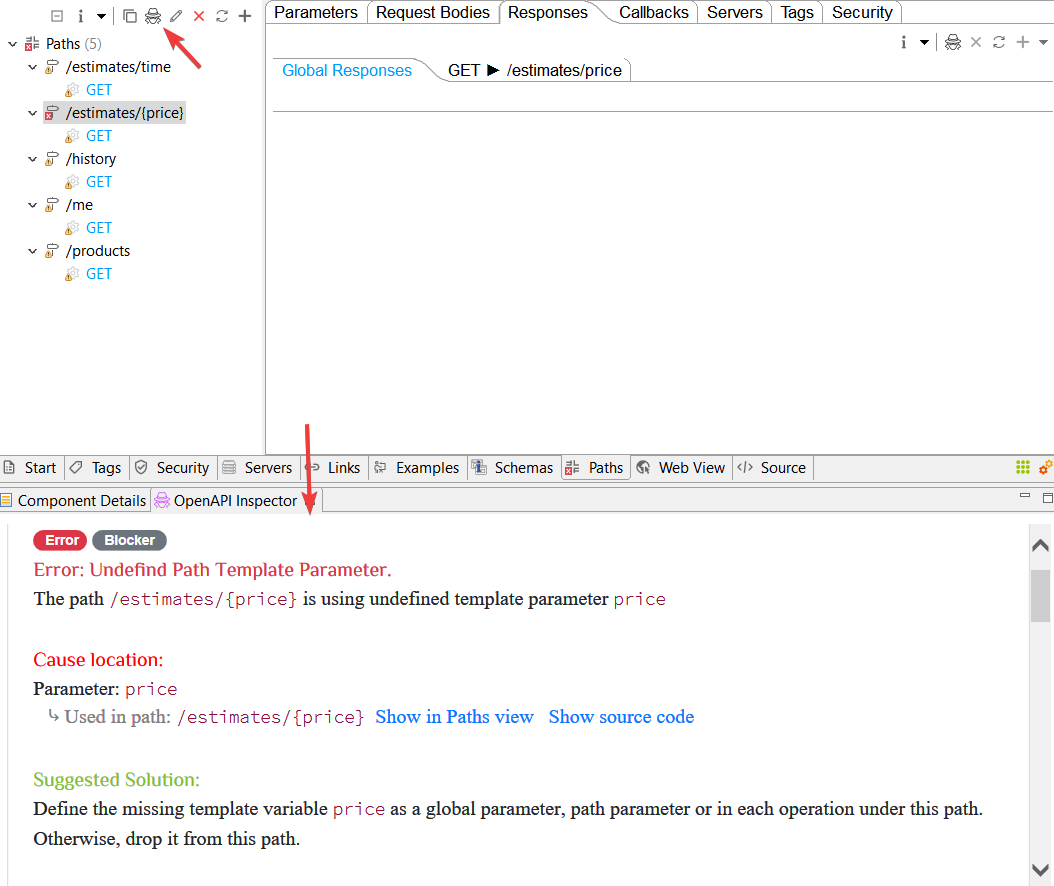

| Paths & Operations validation |
You can validate all paths in one go or path by path.
|
|---|
| Global and operation parameters validation |
Validate the global and operation parameters:
|
|---|

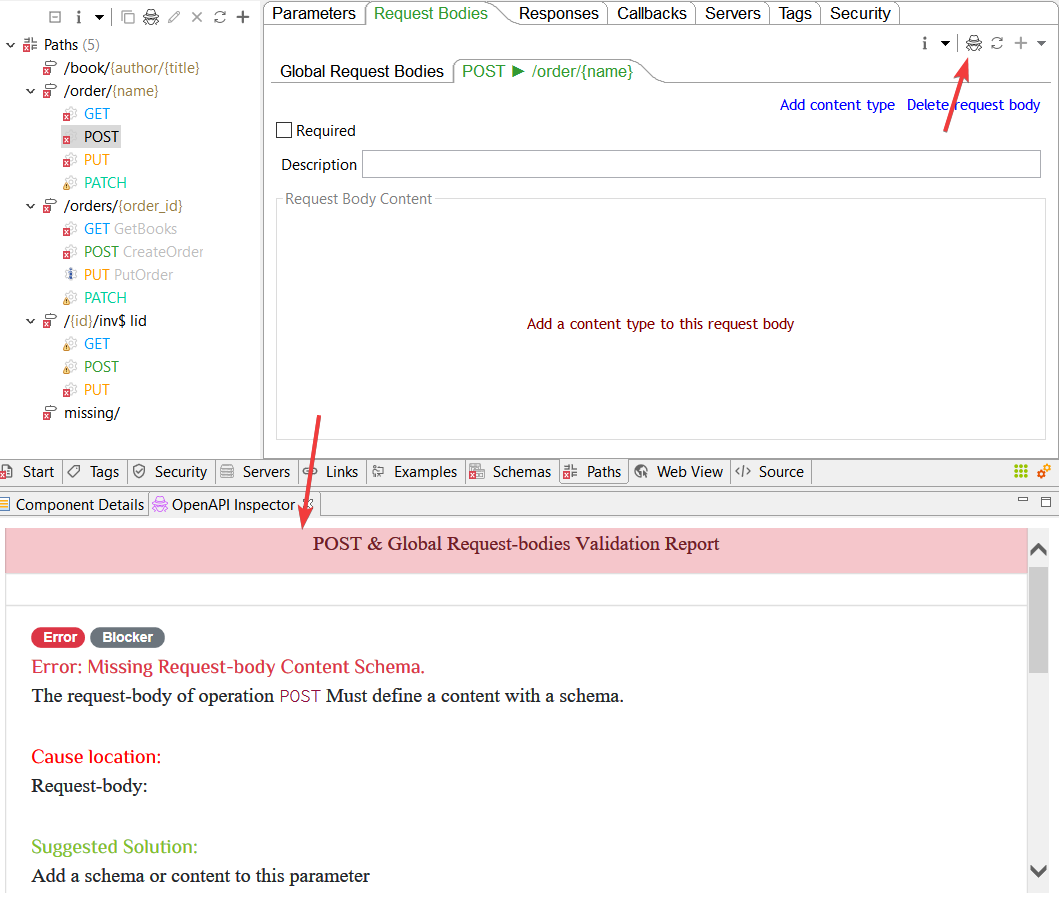

| Global and operation request-bodies validation |
Validate the global and operation request-bodies:
|
|---|

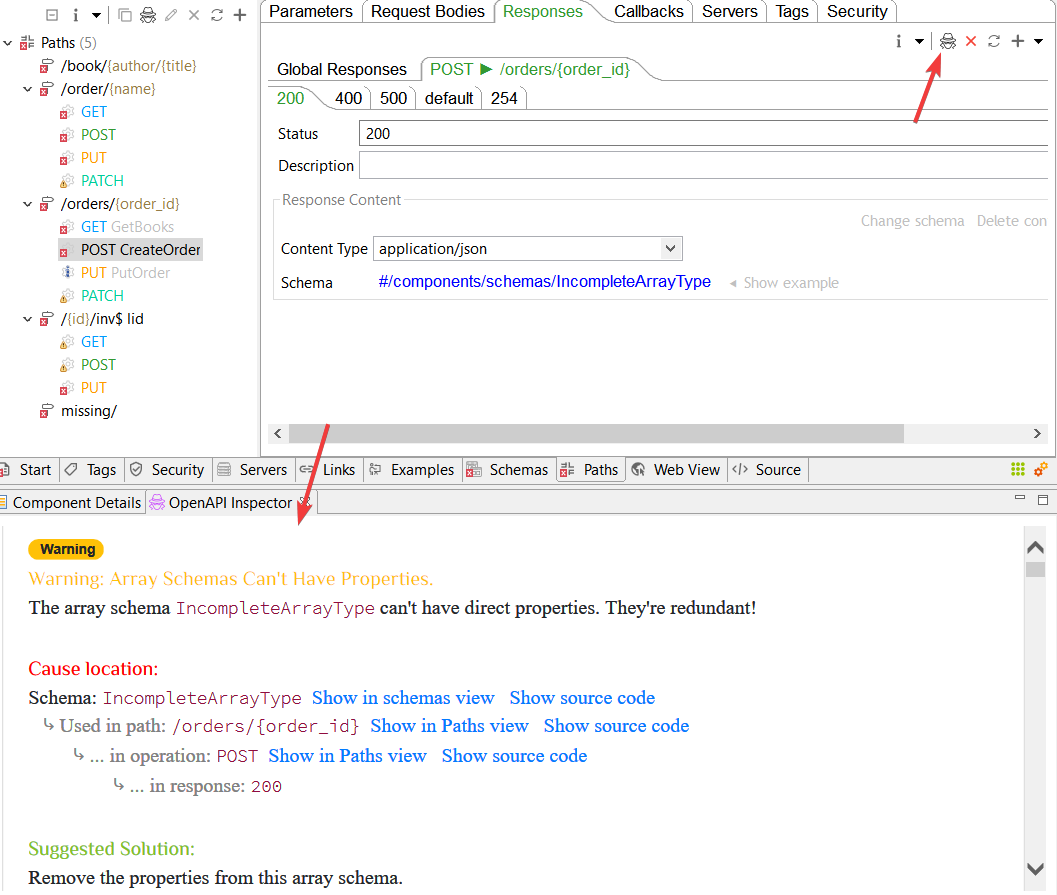

| Global and operation responses validation |
Validate the global and operation responses:
|
|---|
Other issues/enhancements resolved
I18 - API Editor does not validate the OAS3 spec.
- At least the operation Id must be unique across ALL operations and the path variable must be specified when the path contains a path.
- I19 - Creation of existing path destroys the existing path.
- When I create a path that already exists that path replaces the existing path including all existing operations.
- I26 - APIStudio spec help does not jump to the correct anchors.
- When pressing "i" in schema/parameters help, it jumps to the wrong page.
- I28 - Prevent self-reference when creating an array and composed schemas.
- Prevent in the UI the creation of a schema referencing itself.
- I29 - Enforce schema names to follow specs requirement
- We should prohibit the creation (UI-wise) of a schema with a non-conform name.
- I32 - Schemas view doesn't refresh after editing a schema name
- When editing a schema using the schema edition wizard from the local menu, the Schemas view doesn't refresh.
- 01607 - No More Handles Error from com.reaminsoftware.oas3.ui
- Self-referencing schemas create loops when rendering the UI.
- 01541 - Issue Viewing Spec.
- We'll enforce this specs section in the editor's parameters UI and only show applicable styles choices per parameter location.
- 01545 - Check for Operation ID must be filled and must be unique.
- An operation id, if defined, should be unique across the API document.
- 116 - Spaces in names
- OAStudio allows creating schema fields with spaces. I think this is not allowed.
- 68 - Studio - Add validator
- Validate a given openapi document according to the OAS3 specs
